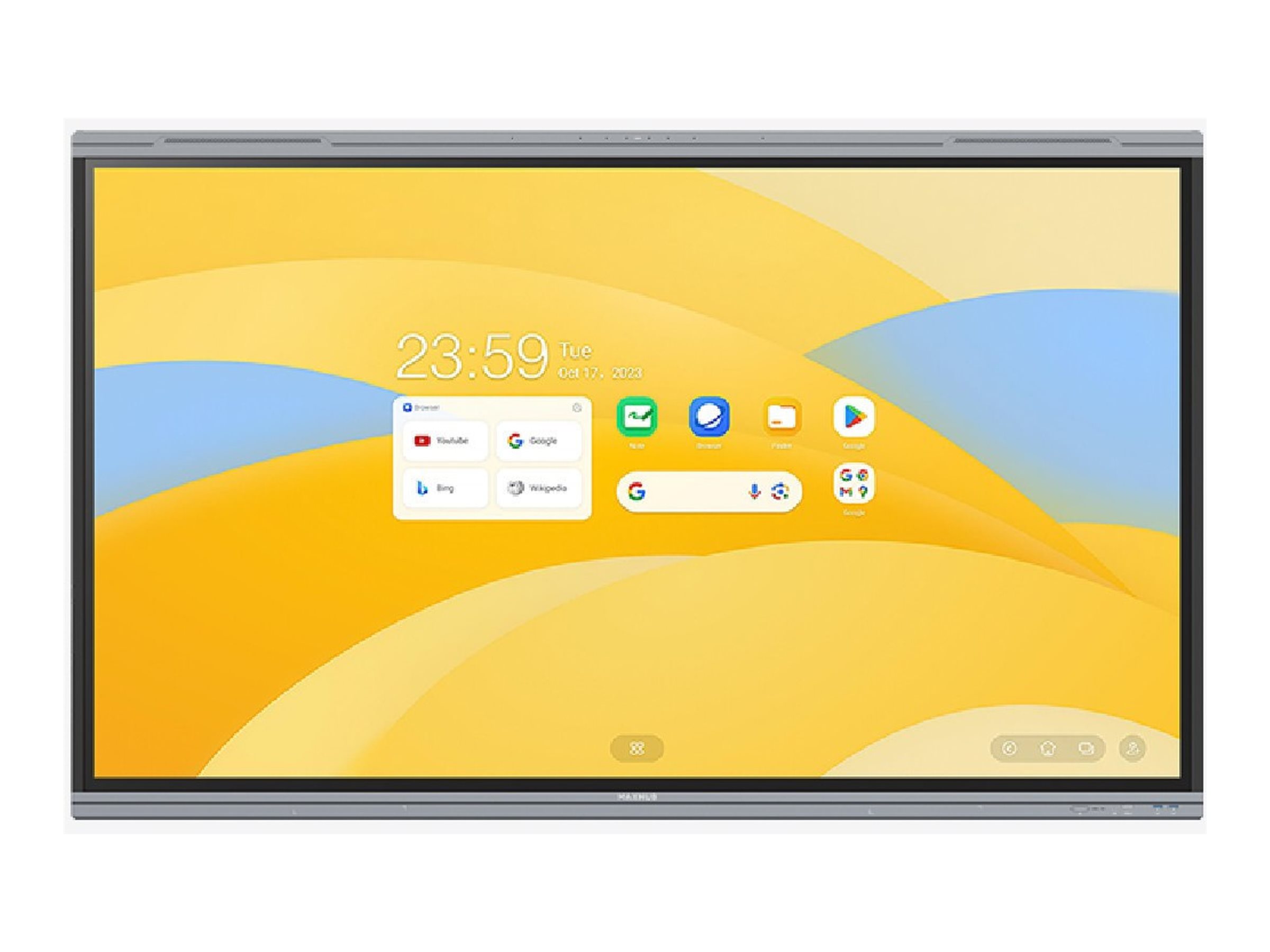

DescriptionThe MAXHUB U6530 is designed for commercial use, particularly in educational environments, offering a 65-inch LED-backlit LCD flat panel display that provides 4K UHD visuals. With a resolution of 3840 x 2160 and a brightness of 500 cd/m², this display ensures clarity and vibrancy in well-lit rooms. The direct-lit LED technology combined with the VA LCD display type allows for a dynamic contrast ratio of 50000:1, providing detail and color accuracy across a wide viewing angle of 178 degrees. The integrated audio system features a 2.2 channel speaker system with a nominal output power of 18 watts, ensuring clear sound, essential for interactive presentations. The built-in 8-array microphone enhances audio capture, making it an ideal choice for conference setups. Additionally, the U6530 facilitates easy connectivity through multiple ports, including HDMI, USB, and DisplayPort, complemented by features like MAXHUB Share and Pivot, enabling smooth screen sharing and collaboration. Equipped with processing capabilities including 8 GB of RAM and 64 GB of storage, this display supports applications from the Google Play Store, enabling web browsing and content playback directly on the screen.65-inch 4K UHD display provides high-resolution visualsIntegrated 2.2 channel speaker system for enhanced audioBuilt-in microphone array for improved sound captureSupports multiple connectivity options for versatile useFeatures like MAXHUB Share enable seamless collaborationVisual clarityThe 65-inch display features a 3840 x 2160 resolution and a maximum brightness of 500 cd/m², ensuring vibrant images and sharp details that enhance the viewing experience.Audio performanceWith a 2.2 channel speaker system and an 18-watt output power, the U6530 delivers crisp and clear sound, suitable for presentations and multimedia content.Connectivity optionsThe display includes multiple inputs such as HDMI, USB, and DisplayPort, allowing users to connect various devices effortlessly, making it ideal for both educational and business settings.Interactive featuresThe presence of MAXHUB Share and MAXHUB Pivot enhances collaboration and interaction, making it easier to share information in real-time during meetings or lectures.Processing capabilitiesEquipped with an octa-core processor, 8 GB RAM, and 64 GB storage, the U6530 supports a range of applications and web browsing directly from the display.What’s in the BoxMAXHUB U6530Remote controlHDMI cable – 3 mUSB touch cable – 3 mWall mount2 styluses, wireless adapter, wall mount, Wi-Fi module, power cable (3 m)Main SpecificationsProduct DescriptionMAXHUB U6530 U3 Series – 65″ LED-backlit LCD display – 4K – for educationProduct TypeLED-backlit LCD flat panel displayDiagonal Class65″Commercial UseYes – educationPlatformAndroidResolution3840 x 2160Display Format4K UHD (2160p)Frame Rate & Enhancement Technology60 Hz Refresh RateVideo InterfaceHDMIHDMI Ports Qty4 portsConnectivityLAN, Wi-Fi, BluetoothPC InterfaceDisplayPort, USB-C, USBTechnologyVALCD Backlight TechnologyDirect-lit LEDImage Aspect Ratio16:9TV TunerNo tunerInternet Streaming ServicesYouTubeCommercial FeaturesMAXHUB Pivot, MAXHUB Share, MAXHUB ClassPicture Enhancements72% Colour Gamut NTSCSpeaker System2.2 channelStorage Capacity64 GBUSB8 portsIncluded AccessoriesRemote control, wireless adapter, 2 styluses, wall mount, power cable (3 m), Wi-Fi moduleVoltageAC 100-240 V (50/60 Hz)Power Consumption Operational195 wattPower Consumption Stand by0.5 wattDimensions (WxDxH)148.8 cm x 8.6 cm x 90.8 cmWeight38.67 kgExtended SpecificationsGeneralProduct TypeLED-backlit LCD flat panel displayPower Consumption Operational195 wattDiagonal Class65″Commercial UseYes – educationSeriesU3 SeriesPlatformAndroidOperating SystemAndroid OS 13TV TunerNo tunerTV Tuner PresenceNoSensorsAmbient light sensor (ALS), colour temperature sensorVideo InterfaceHDMIHDMI Ports Qty4 portsPC InterfaceDisplayPort, USB-C, USBPicture Enhancements72% Colour Gamut NTSCWidth148.8 cmDepth8.6 cmHeight90.8 cmWeight38.67 kgDisplayLCD Display TechnologyVAColour Support1070000000 coloursResolution3840 x 2160Display Format4K UHD (2160p)Image Aspect Ratio16:9Frame Rate & Enhancement Technology60 Hz Refresh RateLCD Backlight TechnologyDirect-lit LEDCoatingZero parallax, 9H hardness, 3 mm glass, anti-glare, anti-bacterialImage Contrast Ratio5000:1Dynamic Contrast Ratio50000:1Brightness500 cd/m²Viewing Angle178 degreesViewing Angle (Vertical)178 degreesTouchpoints Qty50Response Time6.5 msBacklight Life50,000 hour(s)Commercial FeaturesMAXHUB Pivot, MAXHUB Share, MAXHUB ClassFeaturesInfrared touch technologyStands & MountsStandOptionalWall Mount IncludedYesFlat Panel Mount Interface600 x 400 mmVESA CompatibilityYesMedia PlayerUSB PortYesUSB Ports Qty8Configuration4 x ARM Cortex-A76 4 x ARM Cortex-A55 Octa-Core – 8 GB – 64 GB – Mali-G610 MP4Remote ControlTypeRemote controlAudio SystemSpeaker System2.2 channelFeaturesBuilt-in 8-array microphoneSpeakers2 x main channel speaker – 8 watt 2 x main channel speaker – 18 wattNetwork & Internet MultimediaFunctionalityWEB browsing, Internet video playbackConnectivityLAN, Wi-Fi, BluetoothLAN ProtocolGigabit EthernetWi-Fi Protocol802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11nBluetooth VersionBluetooth 5.2Internet Streaming ServicesYouTubeApplication StoreGoogle PlayConnectionsConnector Type4 x HDMI input USB 2.0 4 x USB 3.0 2 x USB input DisplayPort input Audio input RS-232 Gigabit LAN input Gigabit LAN output HDMI output USB output 2 x touch out Audio output SPDIF outputMiscellaneousIncluded AccessoriesWireless adapter, 2 styluses, wall mount, power cable (3 m), Wi-Fi moduleCables IncludedHDMI cable – 3 m USB touch cable – 3 mCompliant StandardsTUV flicker free, TÜV Rheinland Low Blue Light, Google EDLA, SGS, SIAA, IP5XPowerPower DevicePower supplyInput VoltageAC 100-240 V (50/60 Hz)Power Consumption Stand by0.5 wattDimensions & Weight (Shipping)Width (Shipping)162.8 cmDepth (Shipping)20.8 cmHeight (Shipping)100.5 cmWeight (Shipping)48.25 kgEnvironmental ParametersMin Operating Temperature0 °CMax Operating Temperature40 °CHumidity Range Operating10 – 90% RH (non-condensing)
